ALUMINUM CAD DETAILS — Series designed for every climate.
-
38 Series
TITONI 38 Series offers the flexibility for use in both warm and moderately cold climates. With stronger and thicker tempered glass, this allows for panel sizes to be much larger than our competitors.
This series is designed to accept 1-1/2" (38mm) insulated glass.
-
54 Series
TITONI 54 Series is specifically designed for cold climates. Accommodating for oversized “jumbo” glass. Laminated options are available when noise reduction and/or impact performance is desired.
This Series is designed to accept 2-1/8" (54mm) triple-pane, insulated glass.

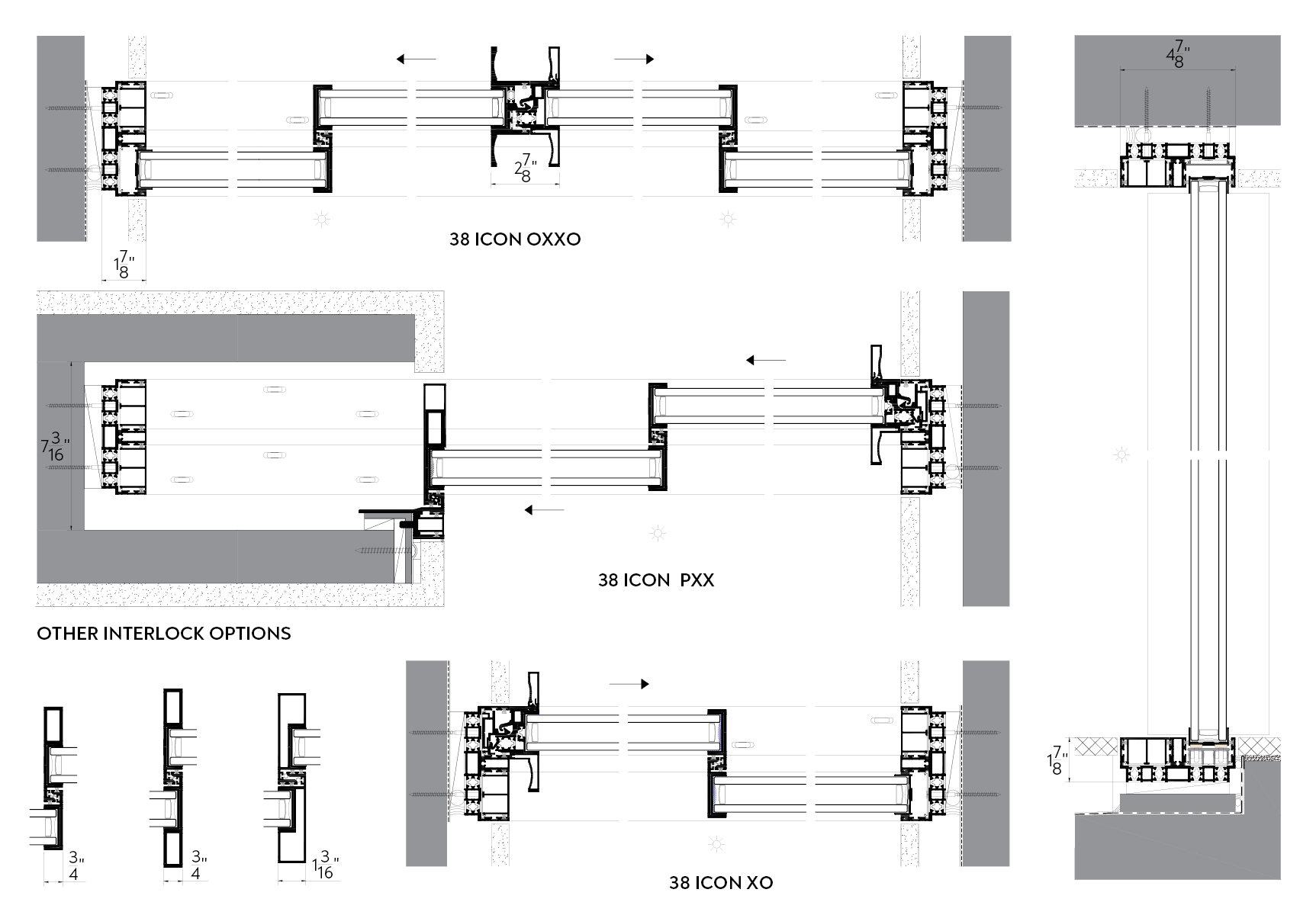

38 ICON

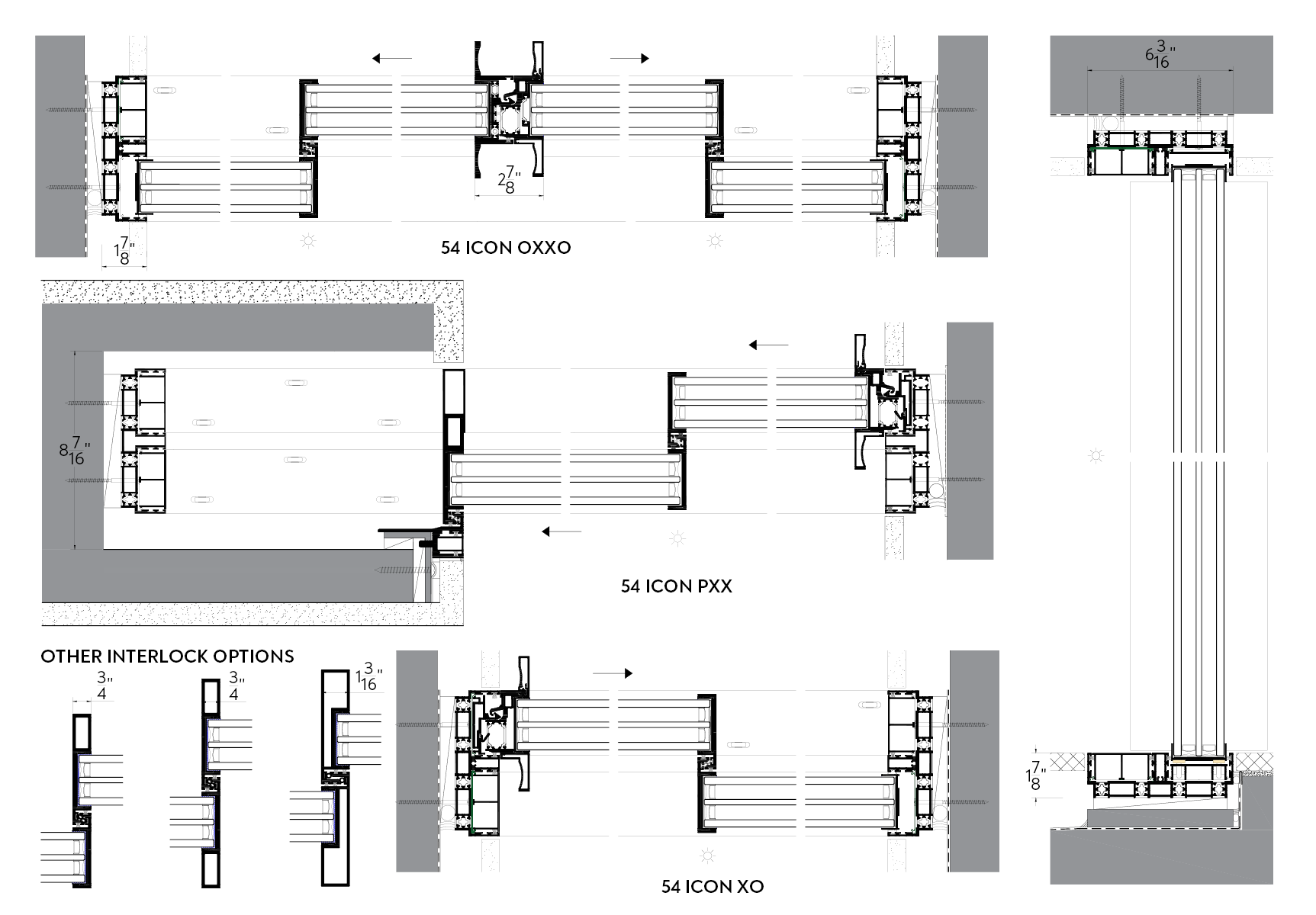

54 ICON
38 ICON PLUS
54 ICON PLUS

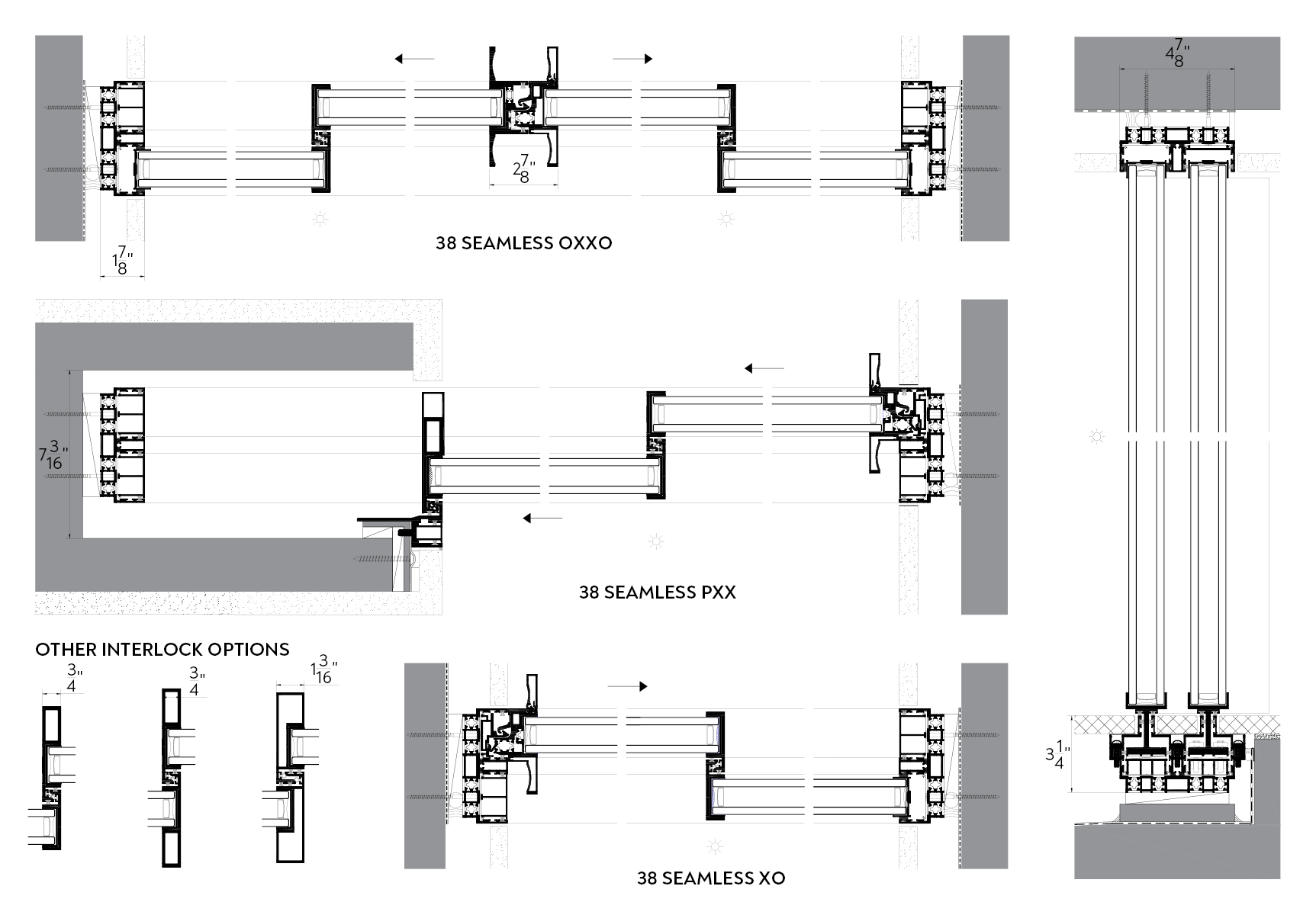

38 SEAMLESS
54 SEAMLESS
38 INFINITY
54 INFINITY
38 SHALLOW
38 PIVOT
54 PIVOT
30 OPEN - INSWING
54 OPEN - INSWING

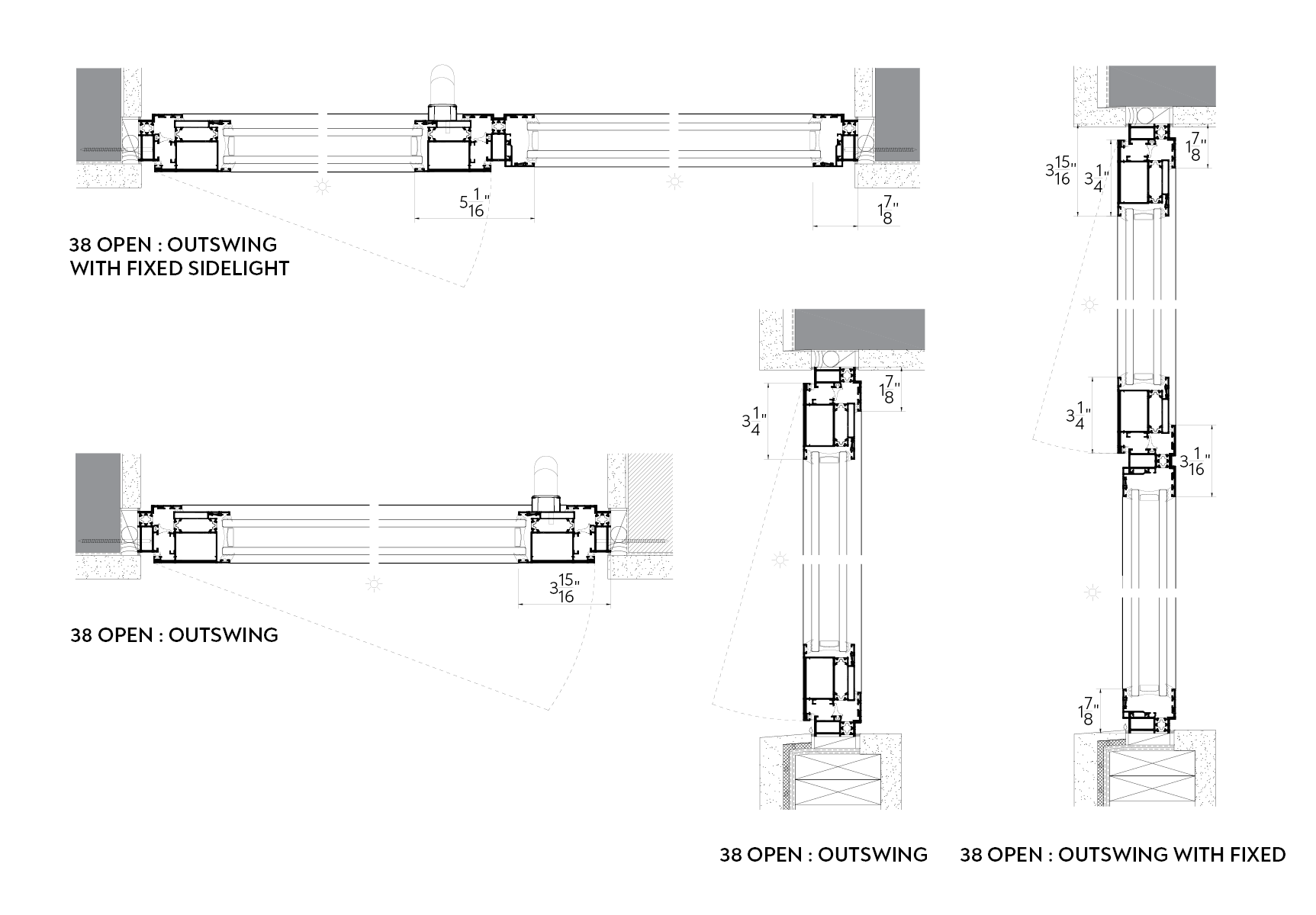

38 OPEN - OUTSWING
54 OPEN - OUTSWING
38 FIXED

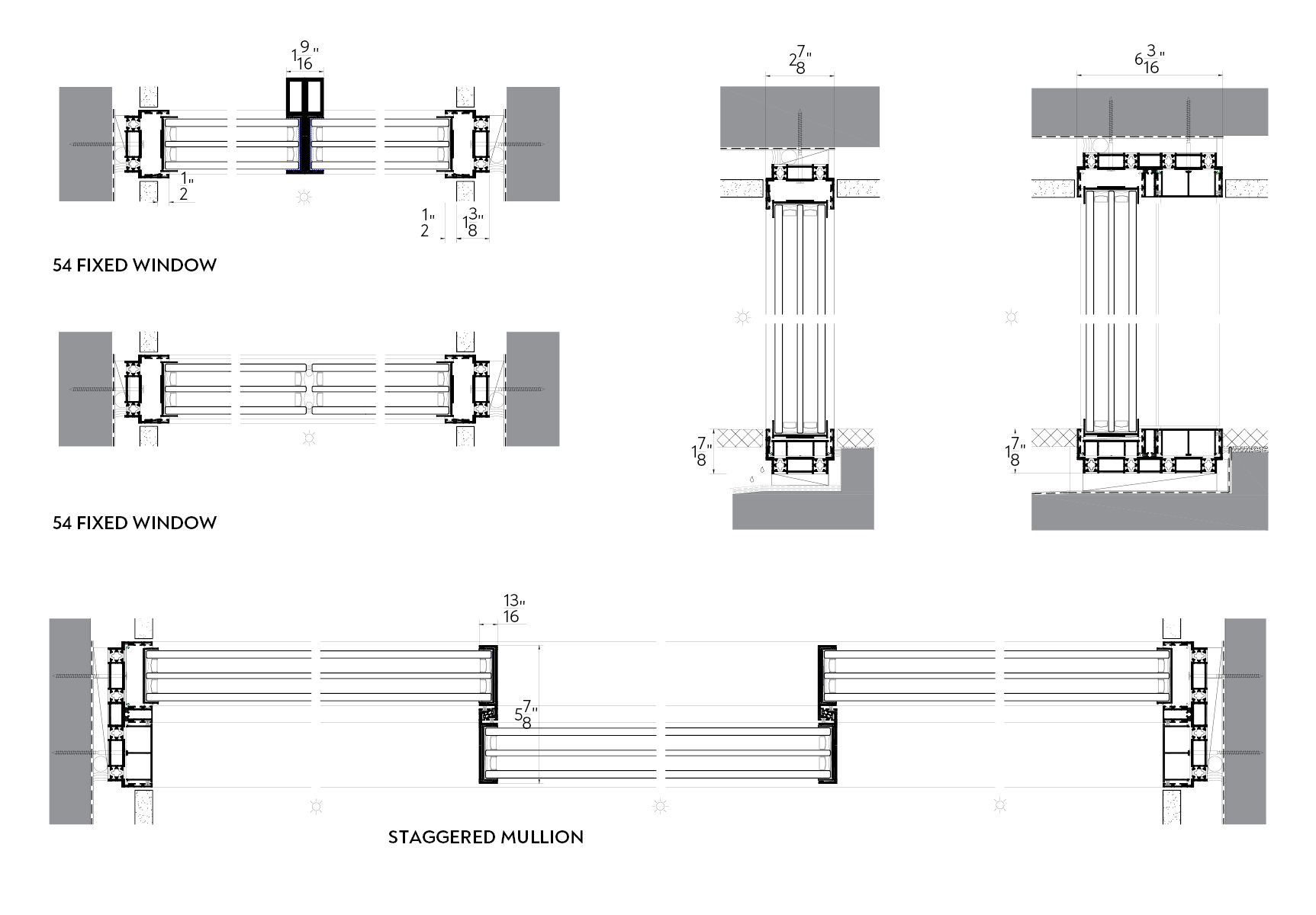

54 FIXED
CURTAINWALL
38 LINEUP
54 LINEUP
HS38 SEAMLESS

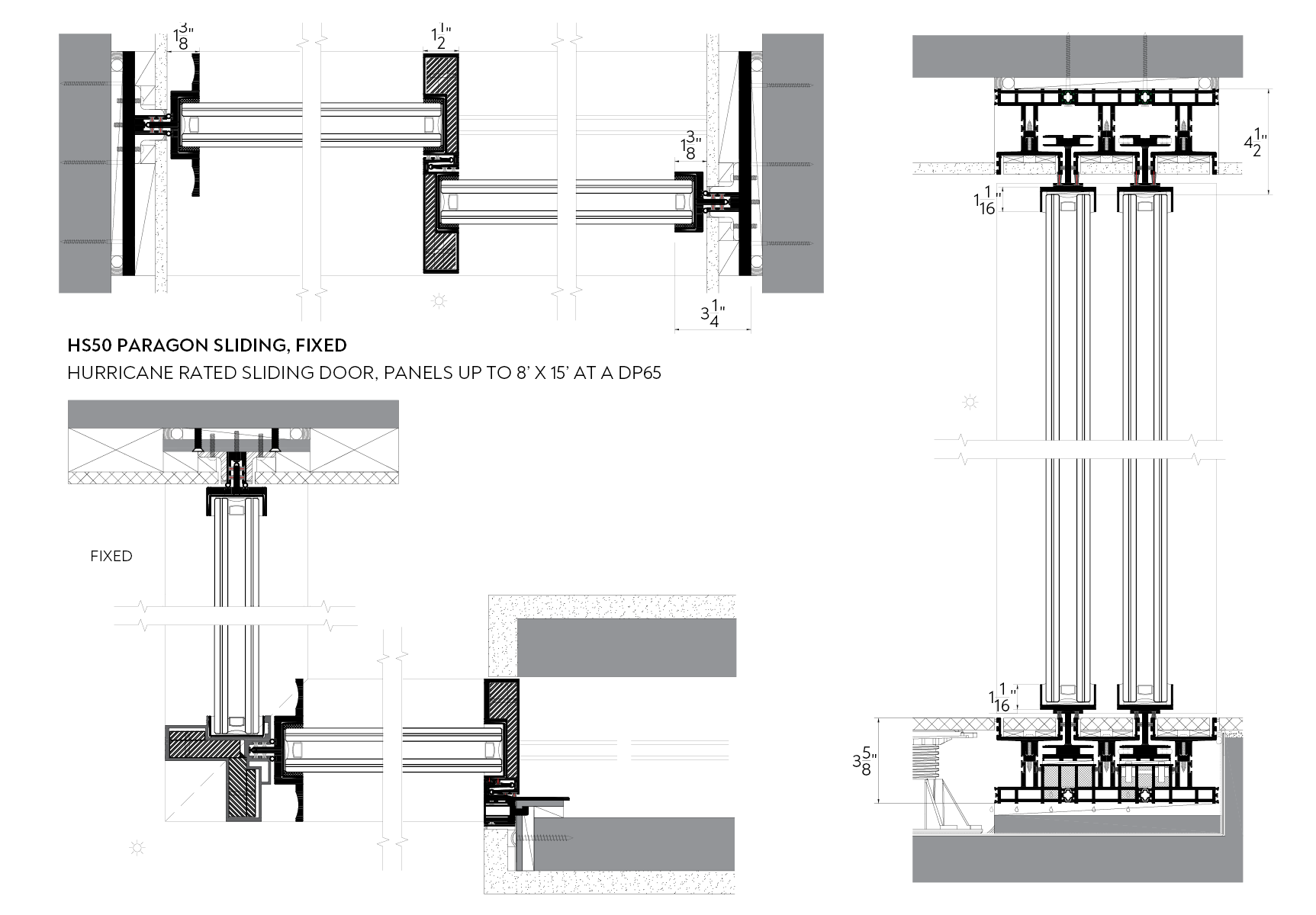

HS50 PARAGON
F40 FRAMELESS
DWG REQUEST
If you’d like to receive DWG files, please complete the form. To help us meet your needs, include detailed information about your request or share your project files with us.
titoni x bimobject
We are excited to announce the launch of our BIM content, including Revit Families, SketchUp files, and AutoCAD 2D drawings, now available on the platform, BIMobject.
We began with our hurricane-rated systems and are now nearing completion of our 38 Icon Series, with full system libraries coming very soon. This is huge news for architects who already love our systems—and for those just getting to know us, it makes working with our products easier than ever.
