THE IDEAL MINIMAL FRAME SERIES FOR MID-CENTURY PROJECTS.

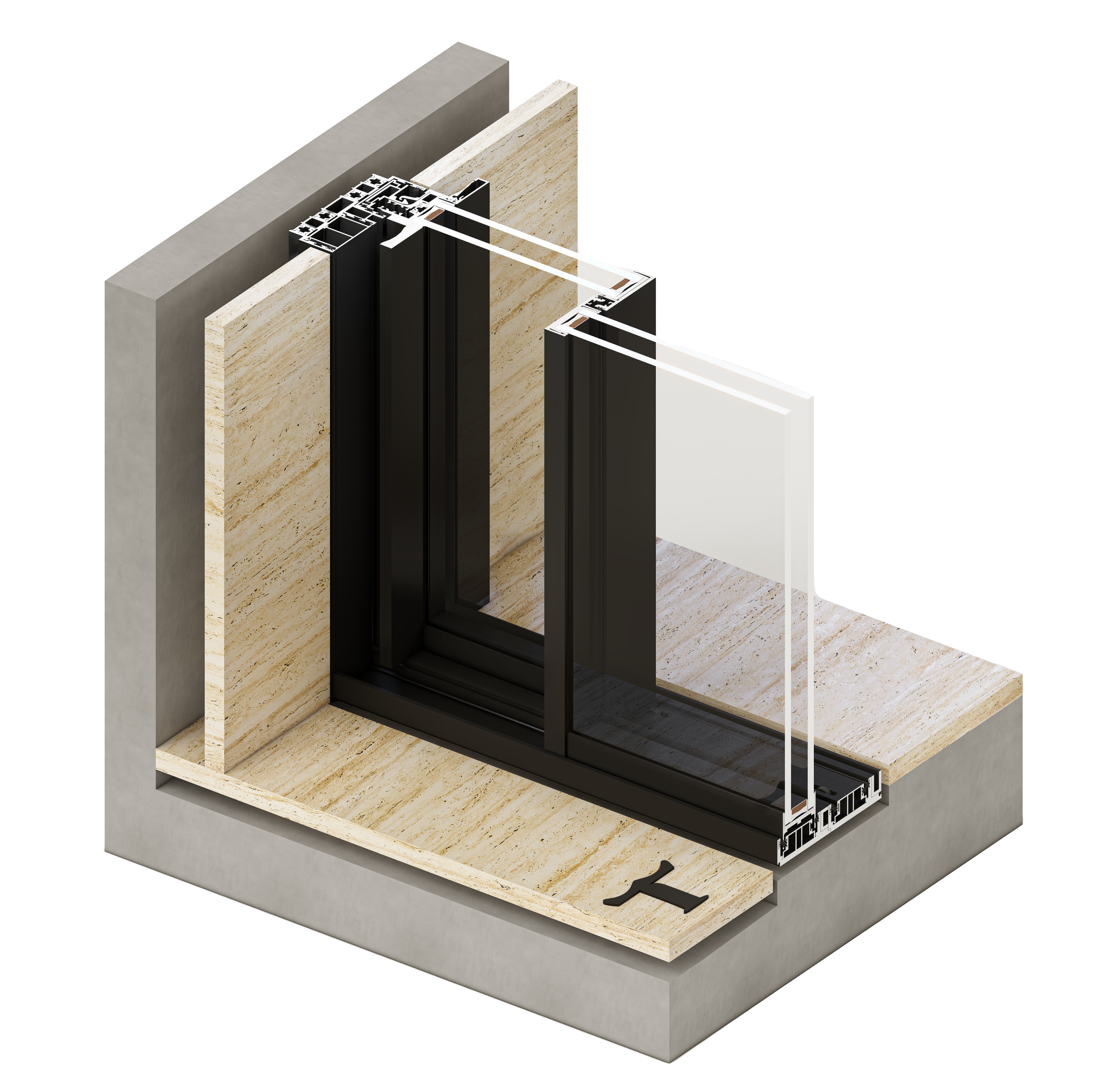

The TITONI ICON SHALLOW System is specifically engineered for projects that cannot accommodate the standard 1-7/8" (48mm) sill frame. With its reduced 1" (25mm) sill height, the ICON SHALLOW is ideally suited for renovation and door-replacement applications where minimal floor demolition is required.

Like the 38 ICON System, the ICON SHALLOW provides versatility for use in both warm and moderately cold climates and is designed to accept 38mm (1-1/2") insulated glass.

System Options:

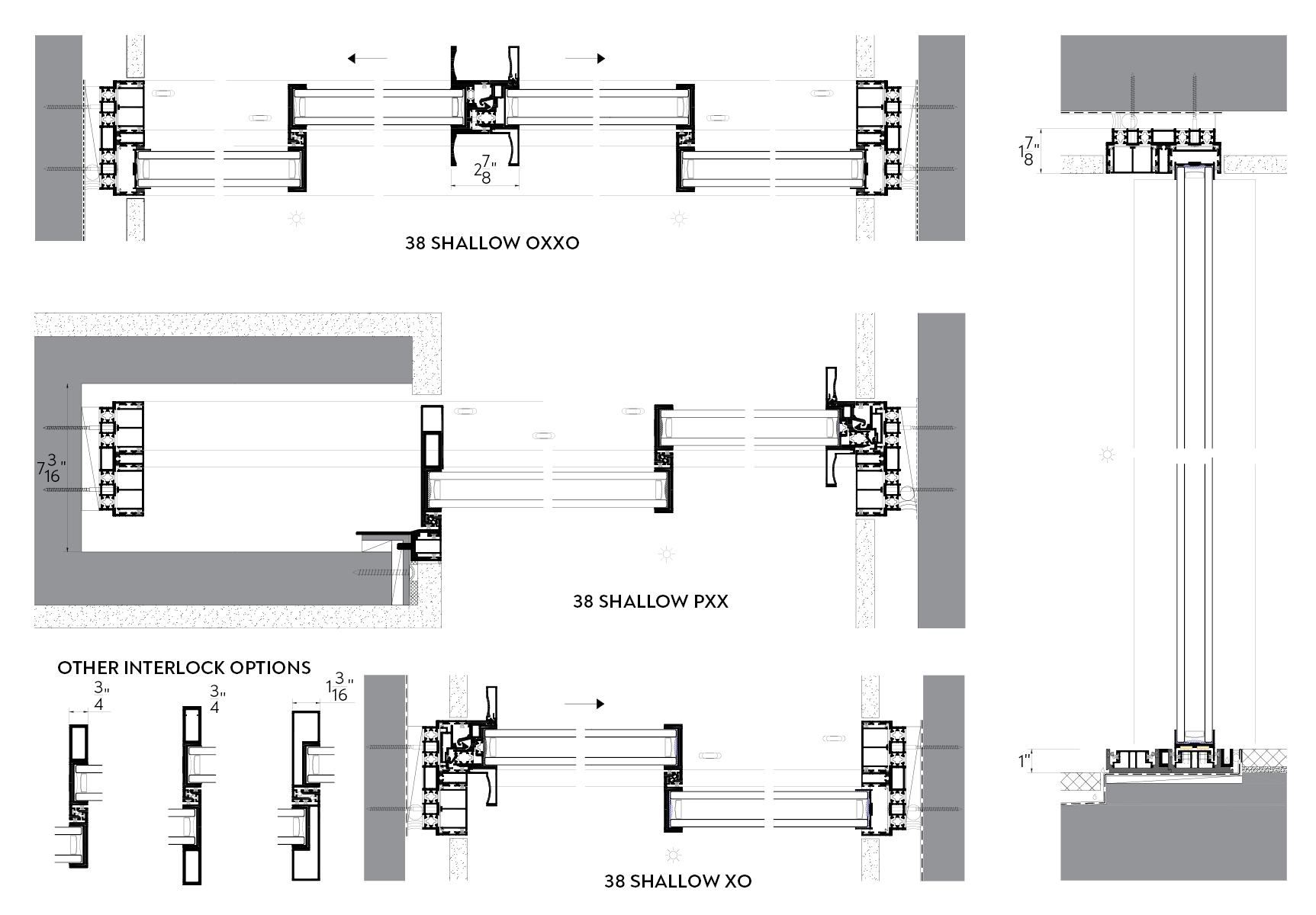

• Available in 38 series

• Vertical Interlock: slim ¾” thickness.

• Configurations: fixed window walls, sliding systems, pocketing, corner openings, and other custom solutions.

Design & Operation:

• Stainless steel bearings mounted within the track system ensure effortless glide, even with oversized or heavy panels.

• Snap-in frame covers conceal fasteners, a rare industry practice, resulting in a refined and elegant finish.

Certifications:

• NFRC certified, with a wide selection of Low-E coatings available in double glazing.
